• TE Series has firing capacities from 10 to 110 litres
• 4-sided heating
• 2-layer insulation
• Elements recessed in grooved bricks
• Pressure spring-supported opening mechanism for the lid

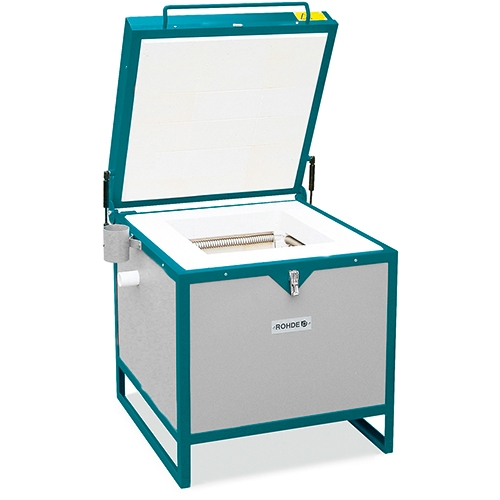

Robust square design with 4-side heating.  The TE 10 Q Top-loader has a volume of 10 litres and is a kiln suitable for temperatures to 1320°C.
The Quattro TE-Q range comprises two different series: models TE-QN and TE-QS in square design with 4-side heating and elements recessed into grooved bricks, and models TE 70 QT/QTS and 110 QT with 4-side heating and elements mounted on support rods.

Both designs are equipped with a high-quality 2-layer insulation structure that is fitted precisely into a very sturdy frame construction. The high-quality, two-colour industrial paint finish used on the frame turns the Quattro series into attractive toploaders. The in-frame ventilated lid and the use of galvanized steel sheet in the kiln casing provide effective protection against corrosion. Another feature of this series is the carefully manufactured kiln lid, as the round toploader it is provided with a pressure spring that allows easy opening of the lid.

Technical Details:

Maximum operating temperature: 1320°C (Cone 10)
Capacity - 1.76 cubic feet (50 litres)

Internal Dimensions:
Width: 380mm
Depth: 380mm
Height: 340mm

External Dimensions:
Width: 630mm
Depth: 780mm
Height: 680mm

Weight: 100kg

Power: 5kW

Supply: 230v - 22A
             415v - 11A
