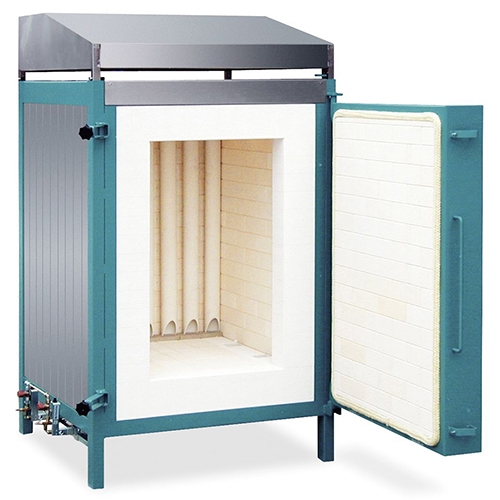

Special features of the KG series:

• Downdraft flame control technology
• Stainless steel in-frame ventilation resulting in low external temperatures and corrosion protection
• Stainless steel hood
• Flame baffle plate to protect the kiln construction in the burner area
• Exhaust air handle setting using a guiding scale

Special equipment:

• Oxygen probe for atmospheric measurement
• CO warning device
• ROHDE natural gas burner Servo-Jet
• Sturdy and robust transport wheels

The extremely silent high-performance intermediate pressure burners were developed specially for gas-fired ROHDE Frontloaders. They ensure an optimal temperature rise even in the high temperature range. The gas fittings including safety technology are pre-installed for connection to gas bottles or gas lines according to DVGW (DVGW German Technical and Scientific Association for Gas and Water). A thermocouple with temperature meter is supplied with the kiln.

You can choose the ROHDE Servo Jet equipment for firing a Frontloader from the KG series with natural gas.

Technical Details:

Capacity - 8.83 cubic feet (250 litres)
Max. temp: 1320°C

Internal Dimensions:
Width: 540mm
Depth: 670mm
Height: 760mm

External Dimensions:
Width: 1190mm
Depth: 1035mm
Height: 1880mm

Weight: 590kg

Energy type: Gas-fired
Power: 40kW

Insulation: 3-layer
Heating: Medium pressure burner
