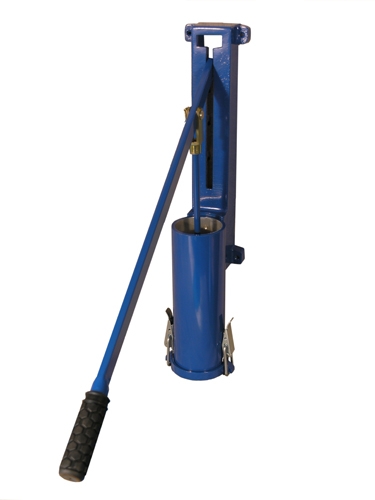

The Claypress Extruder is a robust and compact extruder.  It has been designed to give trouble free use with the least amount of maintenance.  It consists of a main aluminium body with a series of hooks.   In operation the handle is located in the hooks to enable leverage of the plunger in the barrel. The barrel is made from alloy tubing with a 3 inch diameter.  The die holder is attached by means of quick release clips for easy die changing.  This wall extruder comes complete with all fixtures to mount it to a suitable wall and a blank die plate .

It is ideal for extruding handles and coils and small hollow shapes.  Standard dies are available as an optional extra (see images or products 7501 and 7503)

Technical Data

Dimensions: 140mm wide x 155mm deep x 530mm high (Depth with handle 720mm)
Construction: Aluminium body with quick release die holders clips.
Finish: Durable powder coated finish

Weight: 5kg
