Bisque Ware

REVERSIBLE TURNING LATHE

Reversible Turning Lathe

Product Code: 7714
This Revesible Turning Lathe is built to give a long trouble free life with little maintenance.  Construction consists of a 6mm steel base.  At each end there are two aluminium plates with bearings mounted.  The shaft is 35mm diameter with a I' Whitworth thread.  A 0.5hp AC motor transfers drive to the shaft via a V belt and pulley.  Speed is controlled by an AC electronic speed controller, which also has a reversing facility, and the
Show full details

This Turning Lathe is made to order

Price: £2594.80

Quantity:
Next


1. Plaster Lathe Accessories

Cup heads, Face Plates and Spindles available for our Plaster Turning Lathe

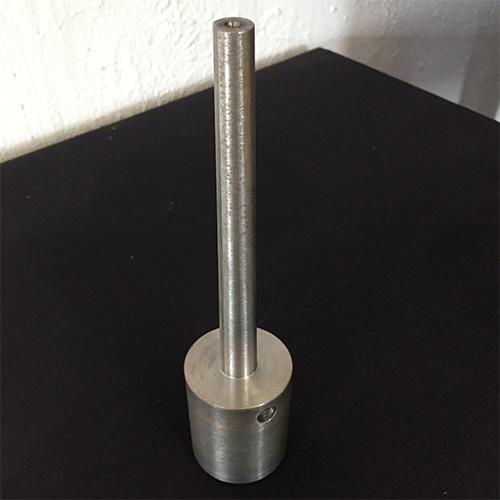

150mm 6 SPINDLE

150mm Spindle

£275.00
Quantity [Pre-order]
Include this item
229mm 9 SPINDLE

229mm Spindle

£295.00
Quantity [Pre-order]
Include this item
305mm 12 SPINDLE

305mm Spindle

£330.00
Quantity [Pre-order]
Include this item
381mm 15 SPINDLE

381mm Spindle

£380.00
Quantity [Pre-order]
Include this item

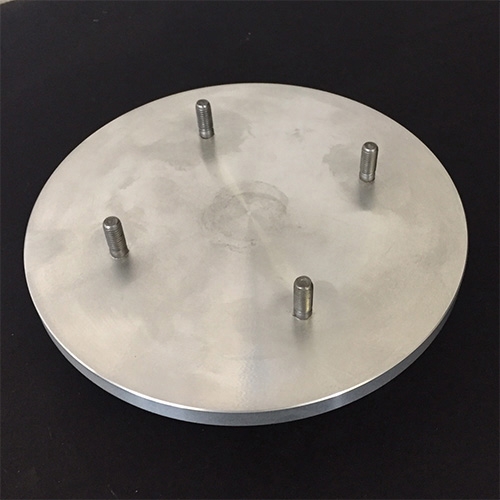

150mm 6 FACE PLATE

150mm Face Plate

£265.00
Quantity [Pre-order]
Include this item
203mm 8 FACE PLATE

203mm Face Plate

£290.00
Quantity [Pre-order]
Include this item
254mm 10 FACE PLATE

254mm Face Plate

£325.00
Quantity [Pre-order]
Include this item
150mm 5.9 CUP HEAD 35mm Deep

150mm Cup Head

£306.00
Quantity [Pre-order]
Include this item

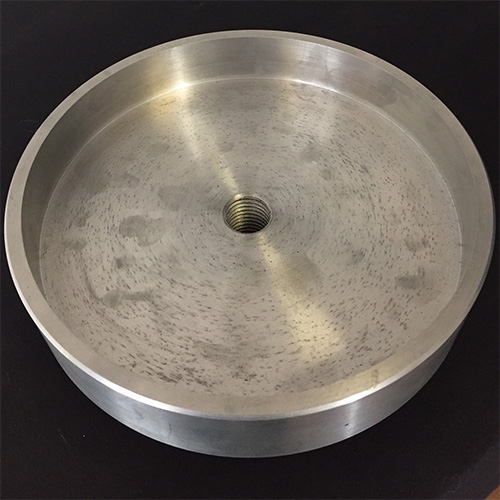

200mm 7.87 CUP HEAD 35mm Deep

200mm Cup Head

£318.00
Quantity [Pre-order]
Include this item
180mm CUP HEAD 35mm Deep

180mm Cup Head

£354.00
Quantity [Pre-order]
Include this item
All items: £2594.80

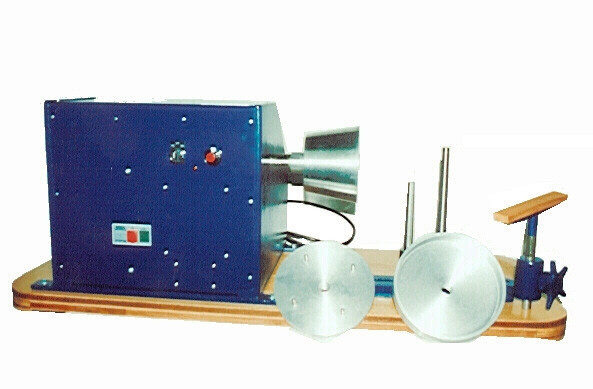

This Revesible Turning Lathe is built to give a long trouble free life with little maintenance.  Construction consists of a 6mm steel base.  At each end there are two aluminium plates with bearings mounted.  The shaft is 35mm diameter with a I' Whitworth thread.  A 0.5hp AC motor transfers drive to the shaft via a V belt and pulley.  Speed is controlled by an AC electronic speed controller, which also has a reversing facility, and the speed is varied by a hand operated knob  A foot operated control is available as an optional extra. The machine is totally enclosed for protection and includes an adjustable tool rest.

Note: The image shown includes optional extras such as Spindles, Face Plates and Cup Heads

Optional Extra


A selection of Spindles, Face Plates & Cup Heads.  Refer to right of scdreen or Accessories & spares Sectilon.

Technical Data:


Drive Motor: 0.37kW single phase 240v variable speed control.
Construction: Electrically welded steel frame.  Aluminium bearing plastes.
Speed Range: 3-380r.p.m.

Overall Dimensions
Length: 1220mm approx
Width: 470mm approx
Height: 410mm approx

Weight: 90kg approx
