The TE-S Series are high quality kilns for every day applications in the professional workshop.  The design of these kilns have been improved over 29 years to combine state of the art technology with high durability.  these kilns also have available the innovative extension rings to increas the capacity of the kiln when demand requires.

Standard Features:

• High quality insulation for frequent firing to 1320°C
• Optimum energy efficiency in the top-loader range
• Power reserve for efficient firing times
• Solid State Relays, silent and virtually wear free
• Kiln Stand reversible to provide two working heights
• 3 year guarantee (excludes heating elements)

Optional Equipment:

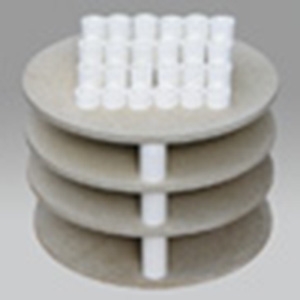

• Kiln Furniture Sets
• Spyholes
• Extension Rings
• Castors
• Floor Elements

Extension Rings

Four models of the TE-S Series can be extended by 50% at any time by simply inserting the extension ring between the base and the kiln with lid.

Reversible Stand

All stands on the TE-S Range are reversible giving the opportunity to simply choose a height that suits the user.

Optional Base Elements

Floor heating elements aids evenly distributed heat throughout the lower and middle sections of the kiln.  Not available for the TE-S 80 model.

Disassembly

All kilns can be disassembled for trasnport into up to four compact pieces.  A door width as little as 55cm can be negoiated when moving the kiln inot position.

Note:  These kilns are all supplied with a socket for easy connection of a kiln controller.  The price shown is for the kiln only.  Just add your choice of ST215 or TC304 kiln controller.  You may also wish to add a furniture set.  Look at these choices on the right side of your screen.

Consideration should always be given to the siting of these kilns.  They should be placed on a fire retardent surface with at least 300mm (12") of space around the kiln to allow heat to dissipate.

We do not hold these kilns in stock.  They are supplied direct from the Rohde warehouse in Germany.  The current lead time is 2-3 weeks from time of order.  The option for a delivery charge is shown to the right.  This price is for delivery to all mainland UK post codes.  If you live in an UK island or outside the UK please email or call for a delivery price.  Unfortunately our web shop is unable to process orders for Rohde kilns outside mainland UK, but we are happy to take your order by telephone and will always email a quote for your needs.

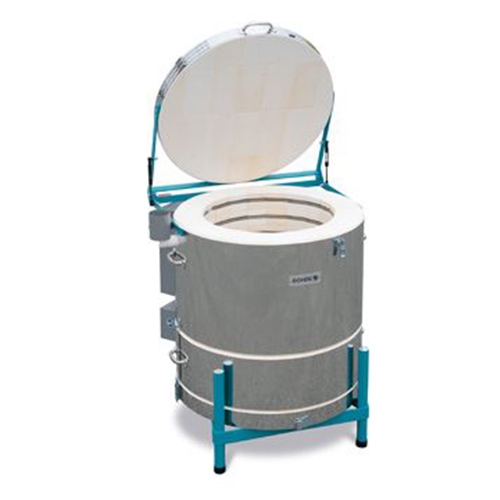

The image shown is to show the overall design of the TE-S range of kilns and may not be the model detailed.

Technical Details:

Capacity - 5.12cubic feet (145 litres)

Internal Dimensions:
Width: 520mm
Depth: 520mm
Height: 690mm

External Dimensions:
Width: 850mm
Depth: 800mm
Height: 1000mm

Weight: 142kg

Power: 10.5kW

Supply: 230v - 48A (1 phase)
              400v - 16A per phase (3 phase)


Supplementary Ring included (This is added to the TE-S 95 to produce the TE-S145):

Internal Dimension:
Width: 520mm
Depth: 520mm
Height: 230mm

External Dimensions:
Width: 850mm
Depth: 800mm
Height: 230mm

Weight: 35kg

Power: 3.5kW

Supply: 230v - A
