Special features of theTS20:

• Large stainless steel mixing barrel
• Clay through out up to 600kg per hour
• Split barrel for easy and safe cleaning
• Working table with easy cut device.
• Safety uynit for automatic switch-off

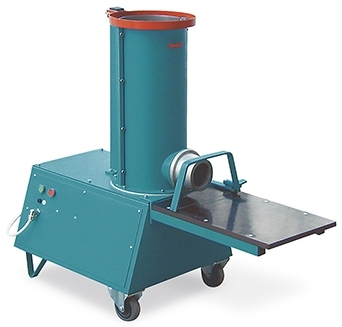

The Rohde Pugmill is an example of robust, durable construction and excellent performance.  It excels processing reclaimed clay and the mixing of different cla bodies.

The mixing barrel, mixing shaft and all other machine parts that come into contact with clay are made of stainless steel.  The vertical design and the large feeder allow easy top loading.  A split body allows easy cleaning.  Two castors and two fixed machine feetprovide a means of easy mobility.  The tray unit and cutting device are detachable and the aluminium nozzle is fitted with threads to enable the fitting of extruder dies.

Technical data:

External Dimension
Width: 540mm
Depth: 100mm
Height: 1070mm

Power: 1ph - 13amp

Speed - 15rpm
Weight - 105kg
