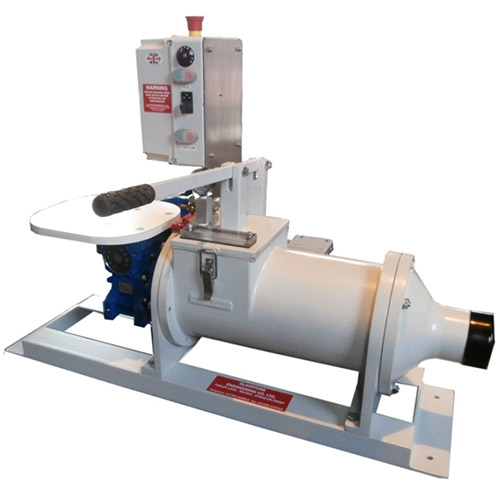

MIXER PUGMILL

Easi-Clean 3in.

Product Code: 7623
Price: £5900.00

Quantity:

A new concept in our range of pugs is the Easi-clean Mixer Pug.  An extremely versatile machine that enables the studio or educational potter to reclaim clay from the dry to the plastic form in one simple process.  Now you can mix your own clay body from scratch, using dry ingrediants and water.  Also no need to reclaim all your clay this indenious option will take dry, hard or reclaim clay and produce a de-aired useable body, with little effort.

Key features:




  • All cast aluminium barrels
  • Stainless steel shaft and mixing blades
  • Large feed hopper for easy loading
  • 75mm extrusion
  • Equipped with a de-airing option
  • Easy cleaning
  • Hands free pugging

The Mixer Pug does not require continuous feeding, making it safer and more efficient.  The loading lid is fully interlocked with a BSEN recognised standard, double-pole safety switch, which operates through an electrical safety switch.  This system prevents any contact between the operator and the moving paddles.  Also this pug is fitted with a thermal overload system, which shuts the equipment down in the event of the unit overheating.



Technical Data:


8in.(200mm) Aluminium Body
3in.(75mm) Extrusion nose cone with split body for easy cleaning
Drive Motor: 0.75kW (0.75hp) reduction drive gearbox, direct drive, 230/400v
Finish: Durable powder coated finish.
Output: Approximately 12kgs per batch (depending on clay type and moisture content.

Overall Dimensions


Height: 650mm approx
Width: 380mm approx
Length: 900mm approx

Weight: 60kg approx
