• 5-side heating resulting in even heat distribution
• Heating elements recessed in protected position into new grooved bricks
• Stainless steel in-frame ventilation resulting in low external temperatures and corrosion protection
• 3-layer insulation structure
• R-SiC ceiling support “System ROHDE” prevents cracks and particles falling from the ceiling onto the ware

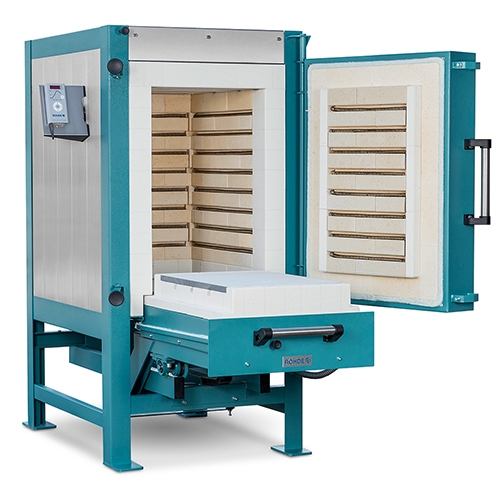

Rohde Frontloaders with Ergo Load System from the ELS-N series comprise two models with kiln volumes between 150 and 200 litres.   The heating elements are recessed into new rooved firebricks on all fi ve wall sides.  The new, robust groove geometry provides the best possible protection for heating elements when the kiln is being charged.  Constant power output ensures that heat is evenly distributed throughout the firing chamber to provide the best possible results.

The ELS-N series has been designed for use in workshops and schools. The high-quality 3-layer insulation structure allows for maximum fi ring temperatures of 1300°C.?

Technical Details:

Capacity - 5.3 cubic feet (150 litres)

Internal Dimensions:
Width: 460mm
Depth: 460mm
Height: 680mm

External Dimensions:
Width: 800mm
Depth: 1080mm
Height: 1730mm

Weight: 450kg

Power: 9kW

Supply: 400v - 13A per phase
